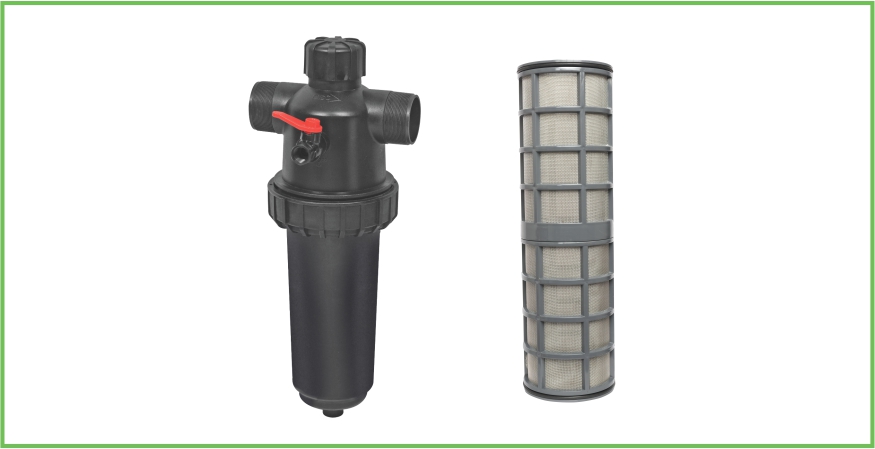

Screen Filters

Raj Group is one of the trusted companies of the industry known for offering high quality Screen filters. Raj Group is engaged in manufacturing as well as supplying of Screen filter. The product is manufactured using latest and high technology.

Raj Group brings to you filters with quality construction and in different configuration choices ensuring that you get one perfectly meeting your needs and purpose. You enjoy availing filters in various bowl capacity, sizes, and models from us.

All our filters are manufactured taking into concern the international quality norms and standards. The maximum capacity of handling pressure that these filters come with is 6kg/cm2. As per the demand placed by our customers, we head with the OEM construction. Durability and quality finish are the key features defining our products.

Easy to install and maintain, no tools required for rising.

Excellent mechanical strength, corrosion resistance.

Wide range of flow rate.

All parts easily available as per customer requirement.

We have provided with tail piece flange for flange connection.
Technical Table
MODEL RPI-SC-30 (2") RPI-SC-40 (2.5") RPI-SC-50 (3")
Nominal Working Pressure 2 kg/cm2 2 kg/cm2 2 kg/cm2
Maximum Working Pressure 6 kg/cm2 6 kg/cm2 6 kg/cm2
Nominal Flow Rate 30 m3/hr (500 ltr/min.) 40 m3/hr (667 ltr/min) 50 m3/hr (834 ltr/min)
Screen Element 149 Micron / 100 mesh 149 Micron / 100 mesh 149 Micron / 100 mesh
Range Of Flow Rate 24 to 40 (m3/hr) 32 to 48 (m3/hr) 40 to 60 (m3/hr)
Filtration Surface 1300 cm2 1300 cm2 1750 cm2
Max Clean Pressure Drop 0.5 kg/cm2 0.5 kg/cm2 0.5 kg/cm2
Cleaning of the water must be done when pressure dierentialacross 0.5 kg/cm2.

Install the strainer in the main line after sand filter vertically / horizontally. Inlet should be on top side & outlet at the top. Provide proper support to ensure it does not vibrate due to water pressure.

Ensure ball valve is fitted before inlet of strainer.

Follow closing instructions as at'd' above.

To start the flow opens the flush valve gradually and slowly.

Ensure recommended pressure at inlet and slowly.

Filter element should be cleaned regularly on time by opening flush and closing outlet.

Clean element talking it out flush valve and closing outlet. Clean element talking it out under water tenderly & periodically.

Water soluble fertilizer and pesticides should be given through ventury. Strong chemical should not be poured into filter directly as it will affect filter element.
